Dating Barns in Holland Township, New Jersey with Dendrochronology (Part 3)

By Carla Cielo, Architectural Historian, Historic Preservation Consultant, Designer, and longtime NBA member.  Two articles on this dendrochronology project have been previously published in the Barn Journal. Check out both stories: Part 1 & Part 2!

(The Historic Preservation Commission of Holland Township, New Jersey, hired ‘Oxford Tree Ring Dating’ to date nine barns with dendrochrolology.  This study has been funded, in part, with grants provided by the New Jersey Historical Commission.  It was hoped that a study of this kind would answer questions related to ethnic settlement patterns.)

The first barn dated with dendrochronology in Holland Township was the Hammerstone Barn – a ground-level, three bay, heavy-timbered, swing beam barn that is located in the hilly section of the township about 8 miles inland from the Delaware River. This preliminary dendrochronology study was completed in 2007 by a colleague who provides dendrochronological services as a side venture. Only 3 samples were taken from the floor structure in a crawlspace: one from a girder that supports the joists at midspan in the crawl space of the west bay and 2 from floor joists. No samples were taken from the main barn frame. Samples were sent to a lab for analysis. The dates were non-conclusive: sample #1 dated 1787, sample #2 gave no date, and sample #3 dated 1785. The possibility of a 1787 construction date was assumed.

After dating six other ground-level, swing beam barns that ranged in date from 1794 to 1812, the 1787 date was questioned. The character of the framing of the Hammerstone Barn looks far more advanced (younger) in its construction methodology than barns that dated to the 1790s. For example, the interior bents of the 1794 James Salter Barn are framed with just two unconnected cambered tie-beams. Whereas in the Hammerstone Barn, struts and passing braces are incorporated into the swing beam bent to join the upper and lower tie beams. This is characteristic of the ground barns that dated after 1803 in Holland Township. It was, therefore, decided to date the barn again using a professional dendrochronologist who operates his own in-house lab. The findings were interesting, to say the least.

This time 7 samples were taken in the barn: 3 from the upper barn frame and 4 from the floor joists (including one joist that had been sampled previously). Two samples revealed that the trees from which the timbers were cut were felled during the winter of 1803/04 suggesting that the barn was built in the spring of 1804. The five remaining samples, unfortunately, could not be dated. The 1804 date, however, is “right on” when compared to the construction details of several other dated barns.

To add further interest, the data was run again on the three samples that were taken in 2007. One of them did indeed date to 1787. Another matched the chronology of the sample that dated 1787 up to 1758 with a “t-value” of over 11. The “t-value” provides an indication of the quality of the match against a reference chronology. A t-value greater then 5 indicates a regional match; above 10 suggests that the samples came from the same tree. In this case, the t-value over 11 indicates that two joists were cut from the same tree and that the sapwood was probably lost from the latter sample. Does this indicate that at least some of the joists were reused from a 1787 structure? Or does it indicate that the sapwood was lost from both samples and that both would date to 1804 if the sapwood remained? Since the core drills appear to have been lost, we likely will never know. It is surely tempting to fantasize a former 1787 log structure being reused as floor joists! But if this was the case, wouldn’t a 1787 date have been re-identified by the second dendrological study?

In conclusion, dendrochronology is a highly valuable tool, but it must be part of a comprehensive study which takes into account a variety of methods to date a building (saw cut, nails, framing methodology etc.). Propagation of a false date can be detrimental to future barn historians.

Renovating the Little Red Barn

This guest post comes to us from one determined barn owner in Allen County, Indiana, and mirrors many of the renovation stories we at the NBA hear regularly, but Jessica Erpelding has the grit and grace to see through her efforts to legally and legitimately open an event barn for weddings and other gatherings–more importantly, to share the ups and downs she has faced along the way. To learn more about Jessica’s efforts to save this barn and share it with her community, click here

Also, please note that we at the NBA know that not every old barn can be converted into assembly space for reasons of building codes/ zoning. We appreciate the and applaud the successful adaptations of these buildings, but know that this type of conversion is not the right fit for many barns across the country.

My name is Jessica Erpelding and this is my unexpected journey of how I fell in love with my barn and its story.  When my husband and I were looking to buy our first home, we were supposed to look at another house down a block but we accidentally took a wrong left turn and stumbled upon this property that had been for sale for quite some time.  We fell in love with the house, property, and the barn that was rundown but still a perk.  However, we had no idea about the history of the barn until after we purchased it.

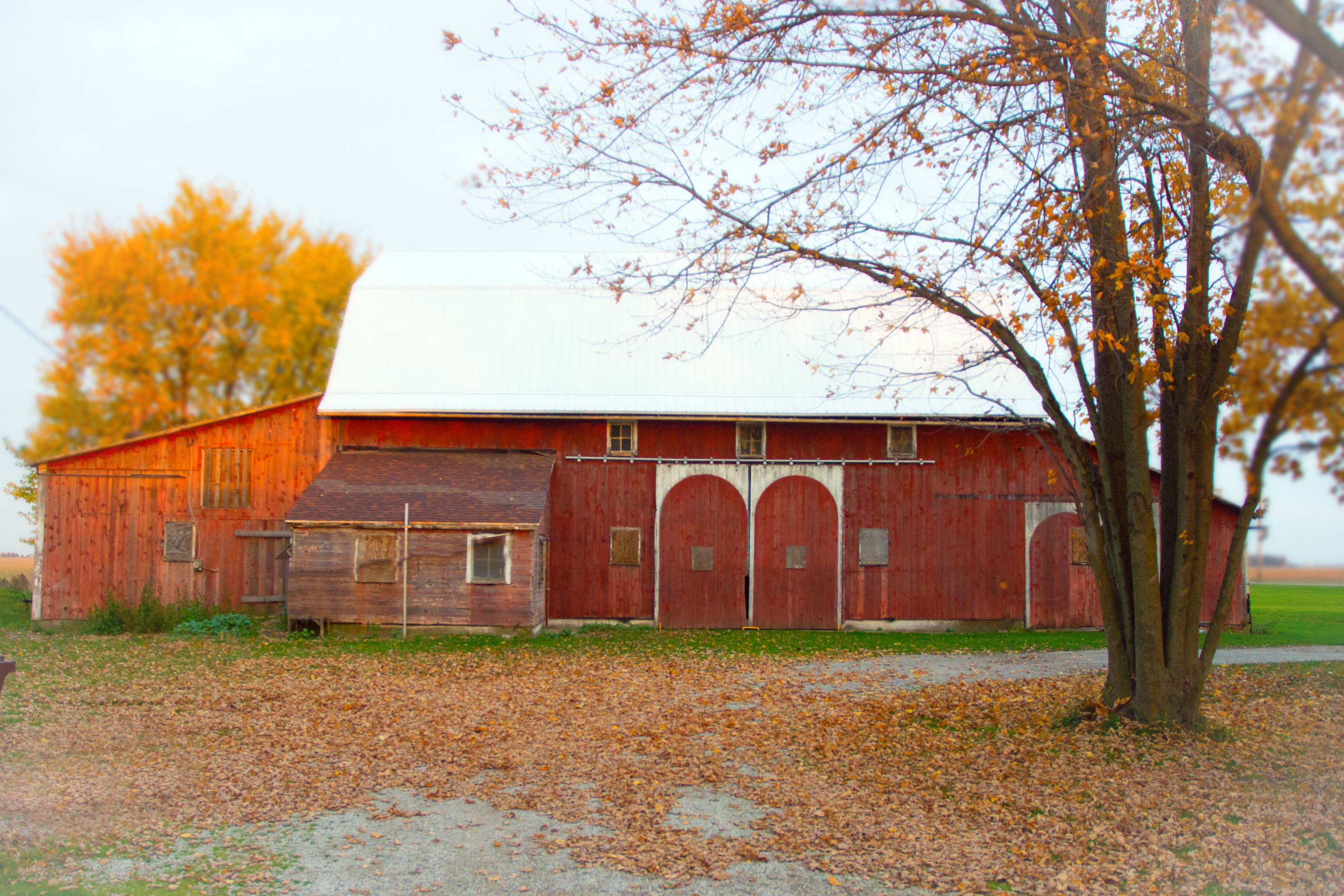

The Little Red Barn Today.

The bank barn is shown on a 1938 aerial picture of the property and may have been built prior to that. It was used for livestock up until Ruby and Oscar Hanefeld purchased the property in the early 1960s.  They successfully transformed the barn into a popular reception hall in our area, that was in business until the late 1980s. This was no small feat.  They built a beautiful hardwood dance floor upstairs by connecting the two existing haylofts. They also added onto the barn to accommodate bathrooms and running water.  They even managed to heat the building and run the business year-round.  At the time that Ruby and Oscar accomplished all of this, the property was located on a dirt/stone road and barn reception halls were unconventional.

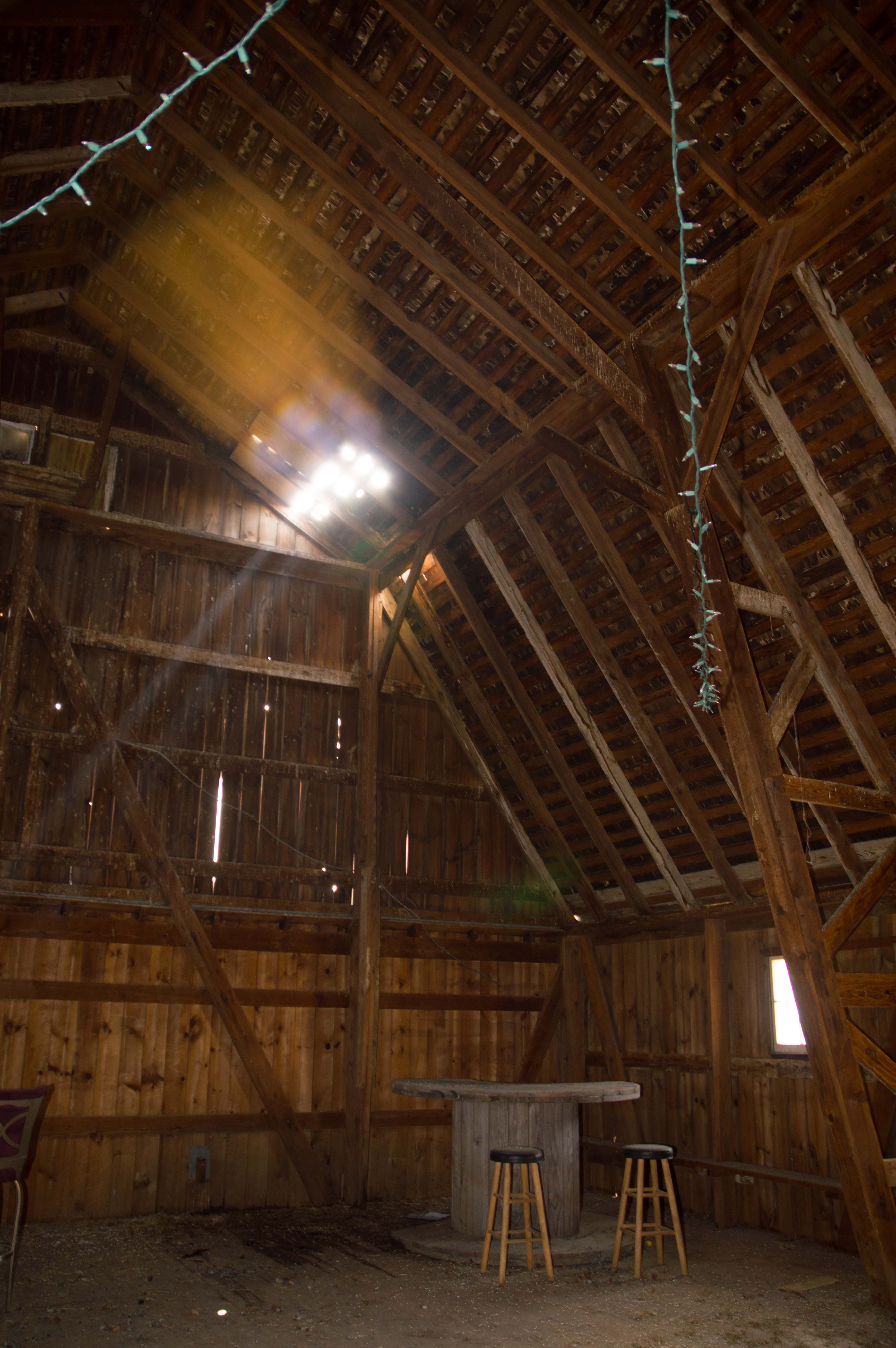

Interior Image Showing Holes in the Roof.

Prior to us purchasing the property, the barn had sat with little to no maintenance for 25 years.  The roof was leaking badly, there was severe water damage to the inside and part of the dance floor, and it was cluttered with remnants of the flea markets Ruby used to have from time to time. The upstairs was covered in about 3-4 inches of bird poop.  It’s funny because I remember when the realtor showed us the barn he said to us, “Think of it as a diamond in the rough.” We had later decided to clean it up enough to have our own wedding reception in it. It was when I was pressure washing the floor upstairs, that I realized it was all beautiful hardwood.  I remember thinking to myself, “There’s my diamond!”

The idea of bringing back this once thriving reception hall was a far-fetched dream, but a dream I was passionate about none-the-less.  Over the years, we managed to replace the roof and fix the water damage.  The more we fixed, the more the barn along with the dreams of its future came alive. So far, we have gotten approval from our county to go ahead with our reception hall plans.  However, the codes and permits required for such a business in Indiana, especially here in Allen County, are much more strict than they were back when the Hanefeld family ran the business.

The Little Red Barn was run as an “unofficial” business in the past, meaning that it was never registered with the state and there are no tax records for such a business. So we were not able to be grandfathered into any zoning regulations.  In the beginning, I assumed that we could fix up the barn little by little by charging discounted rental rates and using the proceeds as “donations” to invest back in to the barn.  I put the barn up on Facebook, not really advertising that I was renting it out in October just to feel it out a little bit.  The response was immense. Before I knew it I had 9 bookings in 2 months with no advertising. I thought this was great, and it was going to happen. I figured, when we got it to the point of where it was up to code, we would start it as an official business.   Come to find out that everything about this plan was wrong and could have gotten me in some hot water.

My husband’s uncle happens to work for the Allen County planning department.  He told me that in the last year alone, he shut down three barns that were doing the exact same thing I was planning to do.  They received huge fines and were closed down.  One of the barns was a repeat offender and they will be unable to open their doors for another 10 years.  This honestly shocked me. I asked him, “But what if I told them the people using my barn were friends or family and they were “donating” to my barn?”  He said, “Jess, I’ve heard it all before and it won’t matter.  Once me, or someone like me, shows up at your doorstep, the gig is up.  It only takes one person to complain or report what you are doing before we show up.” I’m not going to lie, this was disappointing to hear.  However, what he said made sense. It’s not just a tax issue. It’s a public safety issue.  There are codes and permits required to make sure that you are and continue to stay up to a certain level of service to ensure the safety of your guests.  I knew that I did not want to get fined or shut down. I still had those 9 bookings to worry about.  I also knew that I did not want the IRS down my throat or have somebody injured, or possibly killed in my reception hall.  So there was only one thing to do…take the big plunge!

Now keep in mind that this conversation I had with my uncle took place in January of this year 2017.  I had no idea what I was getting myself into.  Luckily, he helped guide me to the next steps I had to take quickly. First step, get in touch with your local counties planning department. Our planning department in Allen County offers you to schedule a conference with the heads of departments such as the board of health, board of zoning, board of traffic and highway safety, etc. This is a great opportunity and take advantage of it if your county offers it.  In the conference you can discuss your plans on what you would like to do and what you want your business to offer, and they give you feedback as to what applications or permits you need to implement your plans.

In my case, the barn is located on an A1 zoning district, which means residential and agricultural use only.  However, there is a loop hole to starting a reception hall and other businesses on an agricultural property.  Per our county’s zoning rules a reception hall is allowed with approval from the Board of Zoning Appeals of a special use application. The application itself cost $350.  I had to submit the application with the land deed and a detailed site plan.  A detailed site plan is basically a drawing of the property and what it will look like once you start your project.  You can draw this yourself or you can have an architect draw one for you. I chose the latter because I was advised that if at your hearing with the Board of Zoning Appeals, your drawing wasn’t right or missing something you have a greater chance of getting your application denied. That meant you would have to resubmit the application, another $350, and wait another month for another hearing.  I wanted to do everything right the first time, so I hired a local engineer.  Honestly, I would recommend this.  Engineers do this for a living they know your county’s codes and requirements like the back of their hand.  So, it takes out a lot of the guesswork and you are going to need one later on when you submit paperwork to the state anyways.

I also found out in my conference from the department of traffic and highway safety that a parking lot is required for such a business. Parking lots here in Allen County are required to be hard paved surfaces and they usually figure 3 people per car for your maximum occupancy. My maximum occupancy is 200, so I needed a lot for 70 cars. This was way bigger than I was planning and it sounded really expensive. My uncle helped me again by telling me that there is a variance application I could submit to request gravel instead of asphalt or concrete.  The application was another $350 but being allowed to have gravel would save me thousands, so I submitted a variance application as well.

Second step is a hearing with the Board of Zoning appeals. This is a make or break process and is very important.  The Board of Zoning Appeals (BZA) has reviewed your application and detailed site plan at this point, and this is where you plead your case. It is a great help to have the support of your neighbors and community.  In most cases, this is their biggest concern.  They can either approve or deny your project at this point. If your project is approved you are free to move on to the next phase, submitting applications to the state.  However, if you get denied you have two choices, try again or give up your project.  I had the approval of my neighbors and our mayor.  The neighbor to the east of my property just requested that I have some sort of landscaping buffer put up to give him more privacy, which I found fair enough.  I had our mayor write me a letter that I brought to the hearing.  If you can’t get a letter from your mayor, letters from your neighbors are just as important.  I am proud to say that as of March 15th we have gotten approval from Allen County to have a reception hall on the property.

Now we are moving on to our state paperwork. This will rezone the barn into a commercial property once it is inspected and up to code.  This part is not cheap by any means.  The barn used to have a septic, but it is unusable.  So, in order to install a new septic system it must meet commercial standards.  To do this you will need to hire a septic designer to submit the proper paperwork to state, and a soil scientist to take samples of the dirt and survey the property for the septic designer.  We have already submitted out paperwork to state and they will send me the requirements like how big of a gallon system it has to be and where it has to be located.  As of now, we have a rough idea of how big it has to be and where it has to be located.  Unfortunately, we have a high clay content in our Indiana soil, so the system will have to be located about 3/4 acre away from the barn itself. Needless to say, this is going to be my biggest expense. My engineer is working on the detailed drawing of the inside. This is expensive, but well worth it if you can get it all right the first time around.  We also need to add another stairway to the upstairs dance floor for an emergency exit, smoke and pull fire alarms, and make it handicapped accessible somehow.

When this all started, I had no idea what I was getting into.  This process is very expensive and not easy, but if you take it in baby steps with stride you can do anything. We never prepped for financing because I thought I could have the barn pay for itself.  I have been a stay at home mom for four years, so it’s not that I have bad credit I just have lack of it.  Everything is in my husband’s name and because of this our debt-to-income ratio would be too high for a traditional business loan. So, if you are considering making this journey yourself learn from my mistake and prep yourself financially for a loan.  We have been taking some steps in hopes of qualifying for a loan or financial assistance in the future. This includes cleaning up our credit scores, getting some revolving credit in the form of a credit card that I am keeping at a low balance and paying on time, and registering the business as an LLC and applying for a DUNs # to built up a business credit score.

Most banks do not like to lend to start-up businesses, so make sure that you have a sound business plan.  I have two. One is for potential investors/lenders, and one for traditional banks. You usually need a credit score higher than 720 in order to apply for a start-up business loan. That’s why it is a good idea to build your business credit score as well if you don’t have the greatest credit.  Talk with your local banks and see what they require for business loan and make sure you tell them that it is a start-up business because they may require additional information.  If you get denied, don’t be afraid to ask why. It is the only way you can better your application for the next time around.  We are self-funding everything now until we are able to qualify for a loan, hopefully, in the next few months. Since conventional loans are out of our reach at the moment, I am stepping out of my comfort zone and searching for unconventional funding in the form of investors, lenders, grants, or donations.  I have started a Kickstarter account as well.  If I am successful on this platform, I think I can start a movement that inspires others like me to believe that they too can help save the precious few old barns we have left.  I’m nobody special, so if I can do this anybody can.

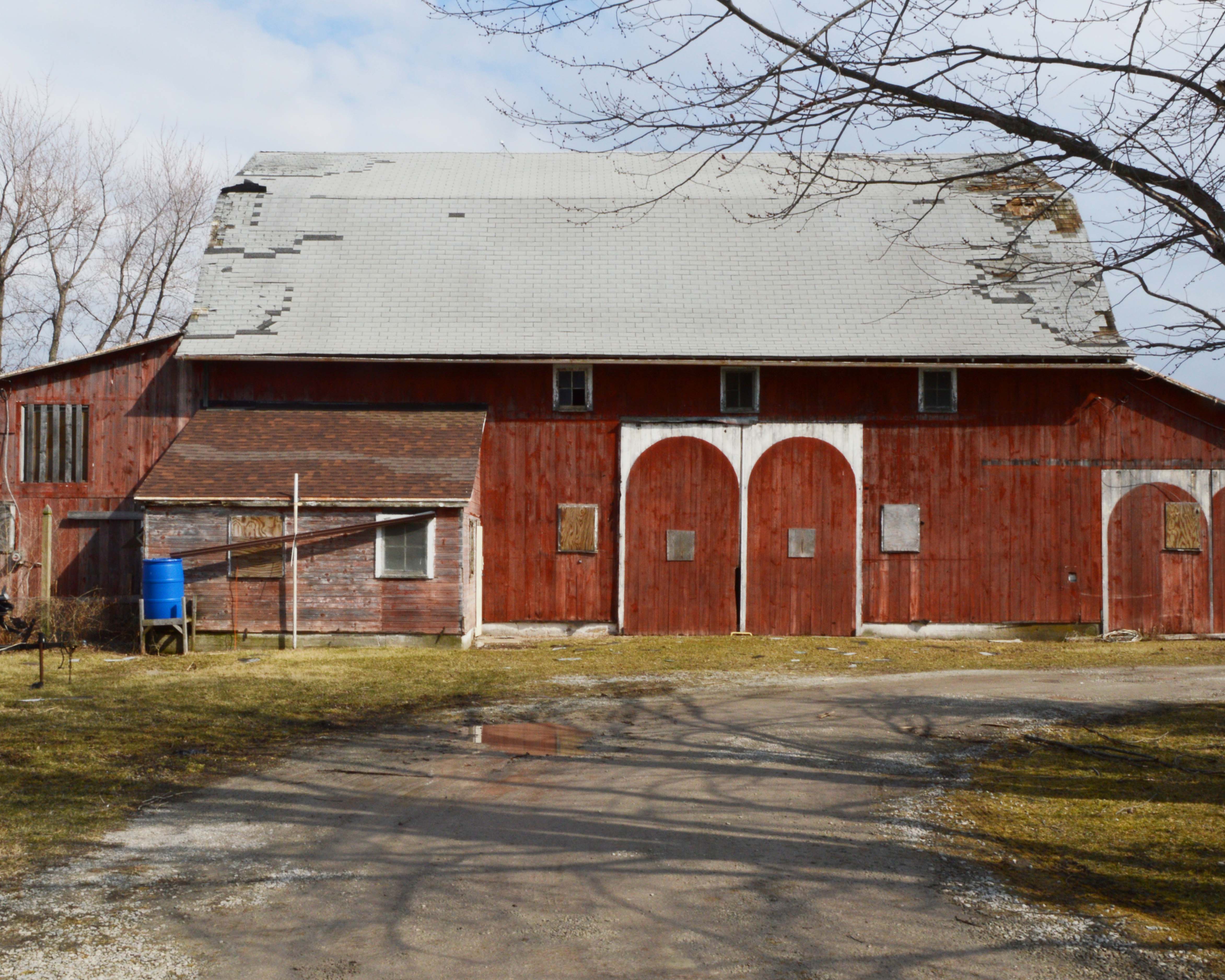

The Barn Before the Erpeldings Got to Work!

The point is don’t give up.  I was not in the greatest position to start this venture, but I have accomplished more in the last four months than I had ever dreamed. This IS something that ordinary people can do.  My advice is to reach out to your county, community, neighbors, and family.  Talk about your plans and seek advice.  I know I couldn’t have done what I did if it wasn’t for the advice and support of others.  You will inevitably have bumps in the road, but great things that come easy won’t last and the great things that lasts won’t come easy.

Saving the Iconic Dairy Barn at Buhlow Lake

If you follow the NBA on Facebook, you might be familiar with the colossal effort being put forth since the Fall of 2014 to Save the Dairy Barn at Buhlow Lake (including the work of a high school student who made fundraising to save the barn her senior class project!). Over the past couple of years, we have watched support for rehabilitating this barn blossom – in part because they are taking the right steps to physically maintain it, but also because they have rallied their community behind the long-term goal to preserve this iconic barn.

Though there is never enough money to save all of America’s great barns, outstanding examples like the Dairy Barn at Buhlow Lake clearly have the power to unite us, enrich our rural landscape, and remind us of our shared agricultural history.  Our thanks to the volunteers and area residents for their work to make a big difference in their community and save that barn!

Guest post by Dave Curry, Committee Member, Save the Dairy Barn at Buhlow Lake

Barn History

Circa 1968 View of South Side of Dairy Barn

Circa 1968 View of South Side of Dairy Barn

In Pineville, Louisiana overlooking Buhlow Lake sits a beautiful old Dairy Barn on the property of the Central Louisiana State Hospital.  The barn was built in 1923 by Joseph H. Carlin, an architect who was a former patient at the hospital who remained on staff after his successful treatment.  The barn was built to supply dairy products for the hospital and many patients worked there as part of their rehabilitation.

Dairy operations began in 1926 and ceased around 1956 when the pastures used for grazing cows were turned into what is now Buhlow Lake.  The dairy operations moved to Grant Parish.  Since then the barn has mainly been used for storage and most recently was the painting shop, although it is essentially unused today.

The Dairy Barn was listed on the National Register of Historic Places in 1986 and a roofing and stabilization project occurred in the mid 90s as the building was feared to be in danger of collapsing.  Laminated beams were made to replace 10 of the original curved beams that support the roof, and steel tension bars were placed horizontally throughout the loft’s interior for extra reinforcement.  The barn has been recognized by the Louisiana Trust for Historic Preservation as one of the most endangered sites in the state of Louisiana as early as 2009 and for 2016.

In 2012 the State of Louisiana announced plans to relocate the Central Louisiana State Hospital to a new facility to be built near Pinecrest.  Funding is in Priority 5, meaning the timeline is uncertain.

Recent Activity

In November of 2014, Kendra Van Cleef created the “Save the Dairy Barn at Buhlow Lake” page on Facebook.  Within a week there were over 5,000 likes and currently over 10,000 likes.  Many people expressed interest in this project and an informal committee was formed to explore possibilities and champion the cause of saving the barn.  The barn is not in danger of being demolished; the primary concern is the deterioration due to weather and the lack of a plan for its restoration and use.

An Historic Structure Report was prepared and donated by Tom David, owner of Pan-American Engineers, providing an assessment of the structural condition of the building and some estimates of costs to preserve and rehabilitate the structure.  The long-term issue of the barn’s ownership and operation are still in question, but it is desired to bring the barn into private ownership and a use that is accessible to the public. The initial goals and rough estimates are:

  • First project – $70,000 to repair the north wall that is in danger of falling
  • Total project – $250,000 to completely rehabilitate the exterior

A non-profit corporation has been formed which is entering a Cooperative Endeavor Agreement with the Department of Health of the State of Louisiana for a restoration project for the Dairy Barn with Save the Dairy Barn at Buhlow Lake raising funds and donating repairs.  The “Save the Dairy Barn Fund” has been established with the Central Louisiana Community Foundation to provide financial accountability in receiving tax-deductible donations.

DONATE $5 or $10, SO WE CAN
“Save the Dairy Barn at Buhlow Lake”

If each of the thousands of people in central Louisiana and beyond (readers of The Barn Journal) donates $5 or $10 to the Save the Dairy Barn Fund, this will help finance this initial project. Now is the time!  Thank you.

North Side of Dairy Barn (Photo Credit: Kendra Van Cleef)

North Side of Dairy Barn (Photo Credit: Kendra Van Cleef)

Donations to the Save the Dairy Barn Fund at the Central Louisiana Community Foundation can be made by visiting www.savethedairybarn.com or by mail to:

Save the Dairy Barn Fund
c/o Central Louisiana Community Foundation
PO Box 66
Alexandria, LA 71309



Artist Documents Diversity in Barns of Indiana

Excerpts of this story come to us from our partners in barn preservation at the Indiana Barn Foundation and details the work of a long-time NBA member and barn advocate, painter Gwen Gutwein.  Over the years, Gwen has graciously allowed the NBA to add interest to a number of articles and social media posts with beautiful paintings.  Therefore it gives us great pleasure to share her story and talent with barn lovers the world over! **Copyright Gwen Gutwein and HERITAGE BARNS. Any reproduction of these images without written permission of the content creator is prohibited.**

Parke County: THOMPSON-HELEN JO WHITED ROUND BARN

Parke County: THOMPSON-HELEN JO WHITED ROUND BARN (Built between 1888-1891, brick foundation and horizontal siding)

In December 2015, Gwen Gutwein made her final trek–searching out distinctive and historic Indiana barns.

Exhibits of Gwen Gutwein’s barn paintings and histories have been touring the state of Indiana since 2009, but her barn-painting project trademarked HERITAGE BARNS started more than eleven years ago in the fall of 2004.  And it all began with a lofty and time-consuming goal: to research, study, and paint two historic barns from each of Indiana’s 92 counties.

Orange County-BOWEN FAMILY BARN (One of the oldest and most unique in the state, possibly a hay press barn)

Orange County-BOWEN FAMILY BARN (One of the oldest and most unique in the state, possibly a hay press barn)

When asked about the project’s purpose and her own motivations, answers come easily.

“Over the years I have seen so many barns disappear.  With each barn we have lost so much. The old barns are very beautiful, literally and figuratively speaking.  Literally, 100 or 150 years ago the materials used to build a barn are almost non-existent today.  The size and length of some of the timbers is extraordinary. Many old barns were built with our native timber!  The skills used back then are unique, ingenious and quite astounding.

The time and skill used to decorate barns must have given such great satisfaction to the barn owner.  Over the years, their barns have graced our countryside with their unique beauty.  And then there is the beauty expressed through time that becomes an integral part of the structure itself, such as the family history, the cultural history, the farmers’ integrity and the farming ingenuity.

Certainly too, I was able to practice my art of painting.  Each painting is a portrait, a barn portrait.  So, like capturing people on the canvas, capturing the essence of each barn’s character was of the utmost importance.”

Sullivan County-DRAKE FAMILY BARN (Built in 1936 with oak and walnut harvested on the farm)

Sullivan County-DRAKE FAMILY BARN (Built in 1936 with oak and walnut harvested on the farm)

To say that this project was a labor of love undercuts just how much work it included.

“Gutwein has a distinct process for completing this extensive project.  She begins with detailed research on each county, through which she selects specific historical barns.  After making contact with each barn owner, she obtains consent to begin the painting process at their location.  Gutwein paints en plein air (or outdoors) for several days to capture the correct lighting, color, mood, and character of each barn.  Measurements, statistics, and stories are also gathered while on site.  From there, Gutwein utilizes photography to record every detail of the barn, from which she can paint in her studio.  Until Gutwein feels the project is complete, none of the barn paintings will be for sale.  She finds the whole project is greater than its parts” (Fort Wayne Museum of  Art).

gwen-logoHer HERITAGE BARNS series of paintings, all 185 (one extra) have been endorsed by the Indiana Bicentennial Commission. Beyond exhibits, Gwen has promoted barns and preservation through interviews, newspaper articles,  “barn talks” and more.  Currently, the Columbus Indiana Visitors Center is hosting an exhibit, installed through the end of 2016.

To learn more about the HERITAGE BARNS project, see the barns she has painted from each of Indiana’s 92 counties, and discover some of the barn stories she has collected, just visit Gwen’s website and watch the video below to check out her studio!



The Heart of the Barn

This guest post comes to us from Daniel Dibner, one of the masterminds (or shoudl we say angels?!?) behind “Hay Trolley Heaven.”  To learn more, visit www.haytrolleyheaven.com!

trolley 2



“The Heart of the Barn” is what hay unloaders or hay trolleys have come to be called for well over a 100 years. I am sure that the readers of the Barn Alliance are quite familiar with these iron wonders, as many still are found directly overhead in the older barns. These remarkable pieces of early barn equipment greatly influenced the majority of the barn designs that we see from the 1870’s to around 1930. If one was a practitioner of “modern” farm techniques, one built their barn from plans provided by one of the many manufacturers of trolleys. Prominent manufacturers included the likes of  F. E. Myers, J. E. Porter, Louden, Ney and Hunt, Helm & Ferris, all providing (in many cases free of charge) the architectural plans needed to build the period’s most efficient means of moving  hay and other crops around,  namely the hay trolley. Farmers either built for timber or steel track systems or were left to lift tons of material into the mow by hand. This was all loose hay technology and it all essentially ends with roll-up baling.

trolley 1

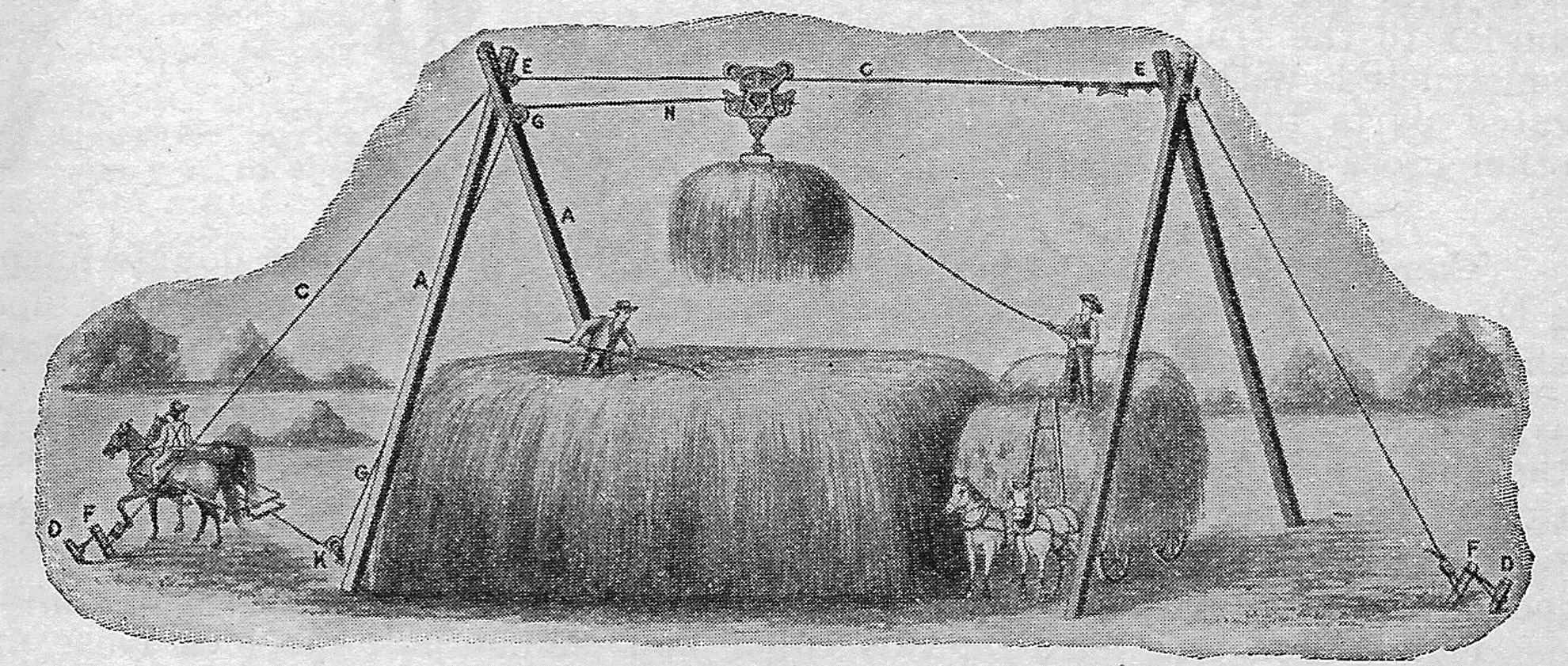

Fewer people are aware that even before barns were built to store the mow, hay trolleys were hard at work in the fields. Systems of cables were strung up and America’s countryside was the home to massive hay stacks that were unmatched in size. Trolleys finally were brought into use in barns as modifications were made to move huge amounts of hay within the structures. How the hay wagons approached the barn, at the end or center, made a great deal of difference in the overall design of these iron wonders.

trolley 3

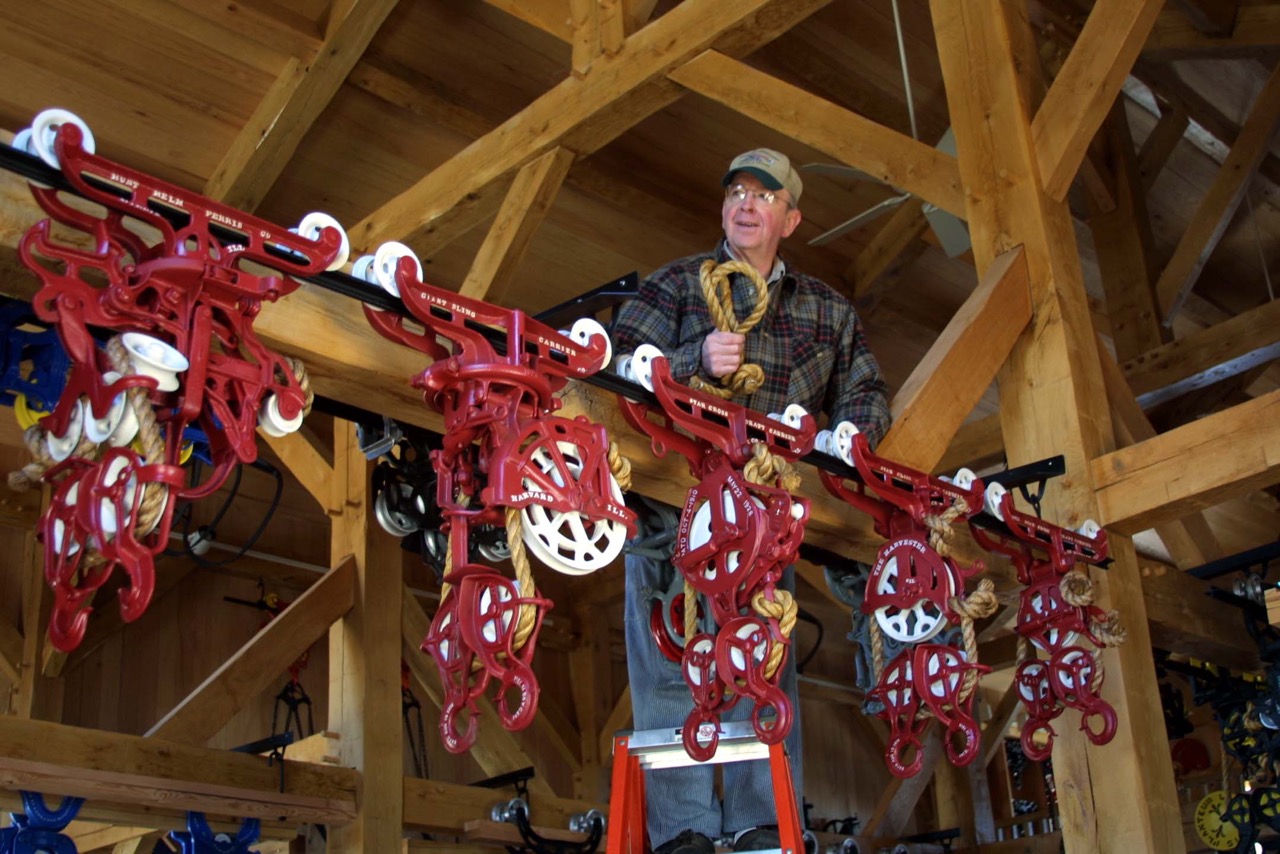

We here at HAYTROLLEYHEAVEN.COM are dedicated to the preservation, cataloging, collection and display of all things related to hay trolleys. When Danae Peckler of the Barn Alliance stumbled on to our website, she reached out to me to ask if our site could be mentioned in your newsletter. The answer was, of course, absolutely!  You love barns, we love barns. Our world is an astonishing mix of what is unquestionably the start of something remarkable.

The amount of patents, from trolleys, to forks, to hay slings, to door rollers and much more, all comes from the ever present advancements made during the late 1880’s. All of this was to allow the American farmer to make the great leap forward through technology and efficiencies found in engineering and industry. We believe that these devices represent some of the earliest programmable machines on the farm. Special trips and stops directed these devices to hold or release on the track, drop their center drop pulley or retain them. There were round barn systems, track switch arrangements and a whole host of lifting techniques that changed life on the farm forever.

trolley 4



During the metal drives of World War I and II, much of the old metal was removed from the farm. But, as there were few patriots that would risk life and limb to climb up some 40 feet to bring down a 50 pound trolley all while balancing on then wooden ladders, they are there to be found. We at haytrolleyheaven.com discover new wonders almost every week.

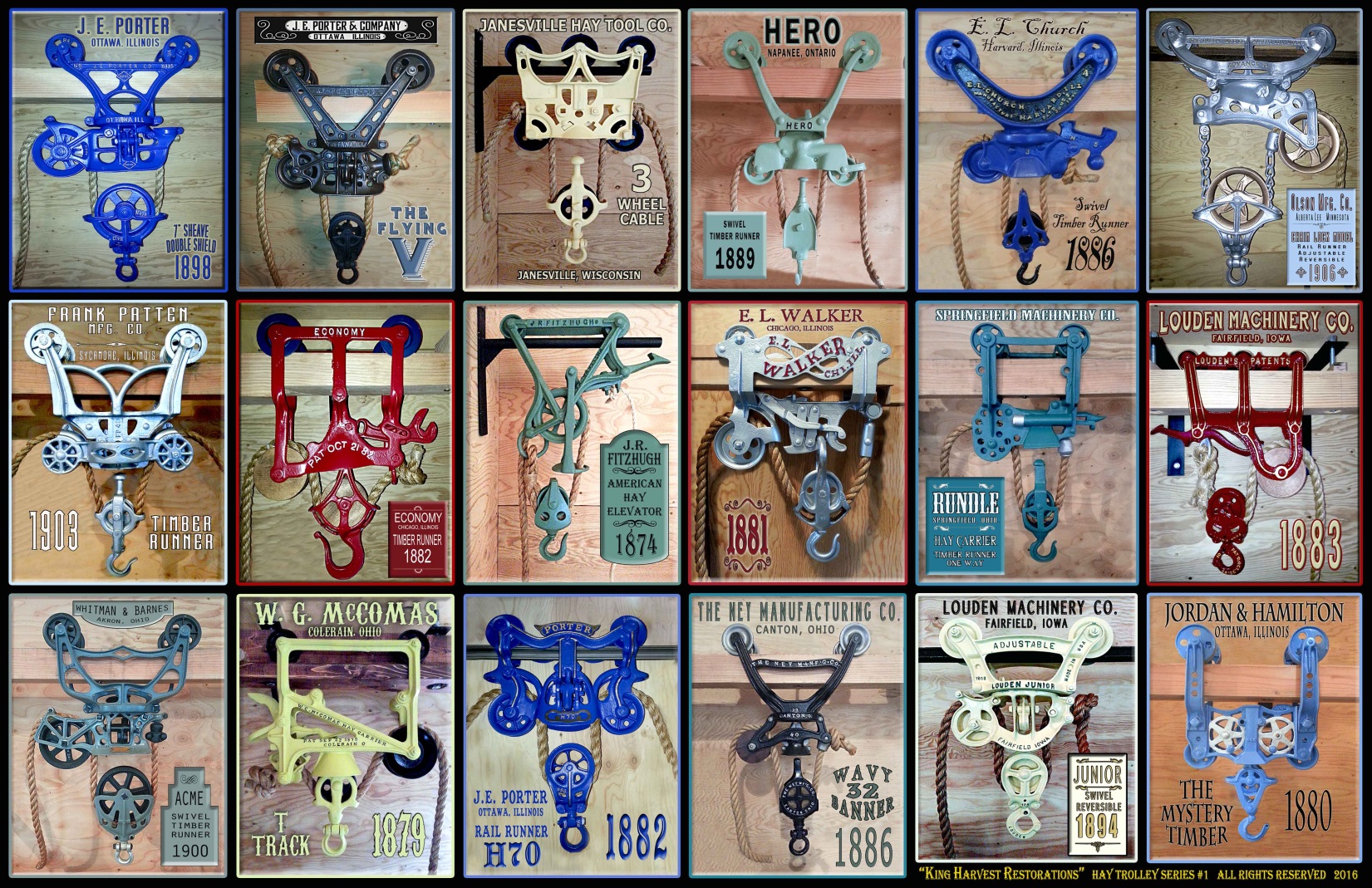

When you come to visit haytrolleyheaven.com you will see the largest cataloging of hay trolleys ever assembled online. The vast majority of Manufacturers, models, advertisements, patents, collection, etc. are presented for the members. There is an active forum that members participate in that gets questions answered, shares pictures of trolleys, restoration tips and a whole lot more. Start with the tabs on the homepage and work your way through the whole website. It is broad and deep and rich with information and data for the beginner to the expert.  We have past editions of our own newsletter available online for downloading as well.

We hope that you will take the time to determine if your barn restoration should include the “Heart of the Barn” if there is an indication that one existed there. With literally 100’s upon 100’s of models being attended to by our membership, we stand ready to assist as required.  Contact us at “admin_1@haytrolleyheaven.com” (must have the “underline” between admin and 1) if you have problems creating log in credentials or have general questions.

trolley 5
